ORBITED - by Moon Amplification

The very powerful ORBITED rotary speaker cabinet

To purchase, please visit our Price List page under Info

^® is the lightest and most compact four-sided musical instrument amplifier available from MOON Amplification with both treble and bass rotors. That doesn't mean it lacks punch or capability.

Though there are no rotating mechanical parts, this ORBITED speaker is a TRUE rotary cabinet. And because there are no rotating mechanical parts to break down, no lubrication or belts needed, it is very sturdy, very dependable and very loud but still a TRUE rotary cabinet.

Our ORBITED speaker models a mechanical rotary speaker complete with movement of the sound around the room, filling the room, with every spot in the room becoming the sweet spot.

Our software models the path of the source of the sound to all four faces of the cabinet just like the traditional rotary cabinet. We model the mechanical rotating speaker with amplitude, frequency, differential delays and phase cancellation effects, partly induced by the electronics but ultimately produced by the acoustic interaction of the four sides of the cabinet with the venue room.

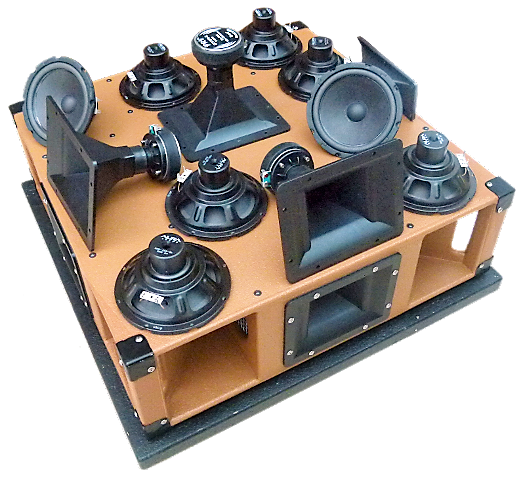

The amazing spatial effect of the ORBITED speaker is produced by the special configuration of 12 high-performance sound transducers covering all four faces of the cabinet, four 100 Watt RMS amplifiers, all coupled with the signal processing power of a dual-core digital signal processor (DSP) for the incredible sound from this little package.

At 45.5 lbs, the small size of the is made possible by super efficient class-D amplifiers and a switch-mode power supply. Large and heavy power transformers are eliminated, replaced by high frequency digital technology that produces enormous power without the heat or weight of analog power amplifiers.

Each of the horns has 12 times the throat area of a traditional long, narrow rotary horn, so there is no throat distortion no matter how loud you play.

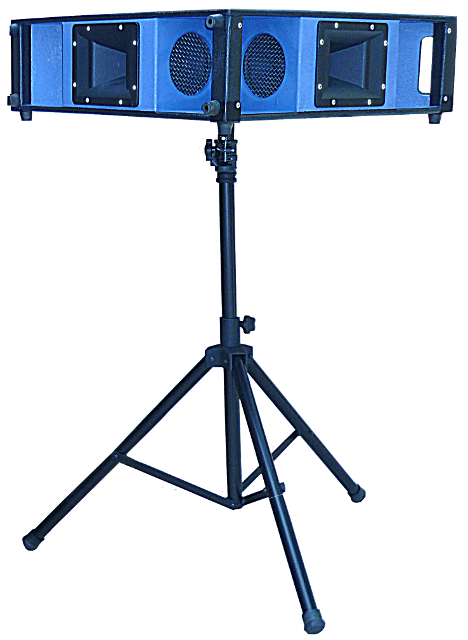

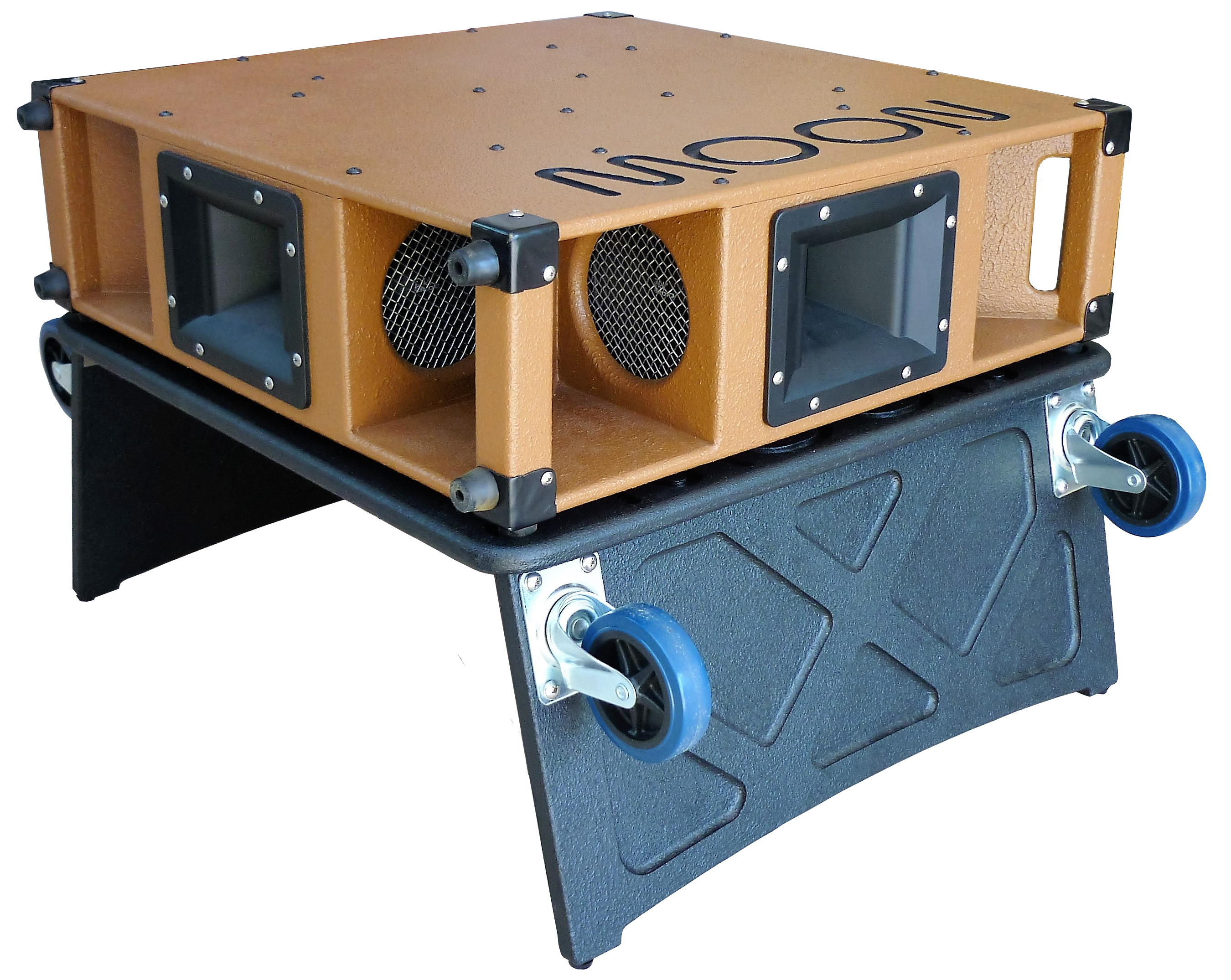

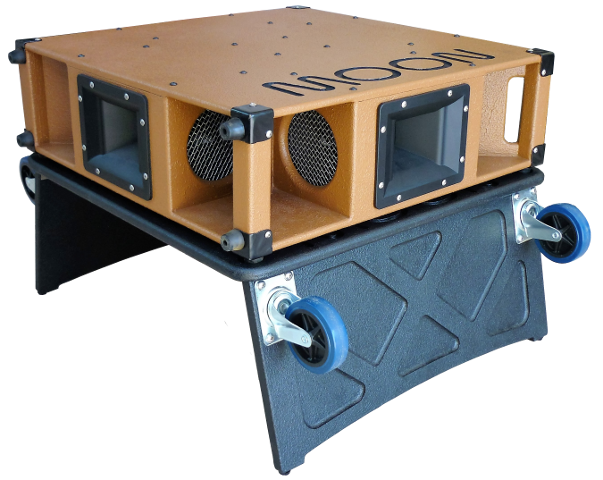

Along with horns, the has eight (8) full-range, light-weight neodymium magnet cone drivers with a crossover bypass to allow a full-range operation mode. This is perfect for situations where you don't need the full power of a subwoofer. Set on a deployed kartStand or use a tripod for more height.

If more bass is wanted, pair the with one of our subwoofers: bigBass^TM or our stationary subBass^TM.

Key clicks are associated with the sound of a real Hammond organ and adds a percussive emphasis for the striking of the key. The has extended high frequency response to make the key clicks cut through the mix. Selecting the horn characteristic in the mixerKontroller^TM will emphasize or attenuate the key clicks.

The mixerKontroller gives access to all the features of the .

Because is loud and has spacial effects that fill the room or area, a mic setup is NOT needed for live performance.

If your gear says ^®, Super ^TM or ^®, then it's a product of Amplification^TM.

The very powerful ORBITED rotary speaker cabinet

To purchase, please visit our Price List page under Info

it's the REAL !
